RS-75 Skid Steer

BUILT FOR COMFORT. ENGINEERED FOR SPEED.

With the precision of pilot controls, fast ground speed, optimum loader cycle time and next-generation MAX-Series features, the radial lift RS-75 not only gets a lot of work done—it gets it done in a hurry.



Quick Specs

USMetric

Brief

Loader Armsskid-steer-radial
Operating Weight7595 lbs3445 kg
Rated Operating Capacity2600 lbs1179 kg
Engine Power74.2 hp55 kW

Built Strong to Stand Out.

The ASV RS-75 skid steer comes with a powerful diesel engine and powertrain to excel in a range of industries and applications. Built for speed, and with an industry-leading ground clearance height, the RS-75 is able to load more material faster without slowing down so operators can get more done in any condition.

Features

Never Compromise

RS-75 Skid Steer

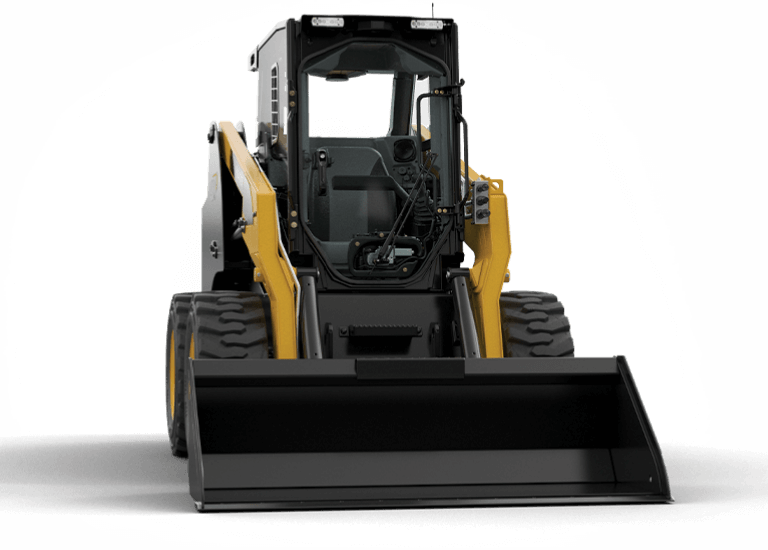

Power

The RS-75 can drive up to 11 mph with an optional two-speed drive. The engine powering the machine is a 2.9-liter, 74-horsepower diesel that kicks out 192 foot-pounds of torque. The Tier 4 Final engine eliminates the need for regeneration, exhaust sensors and diesel exhaust fluid.

RS-75 Skid Steer with bucket

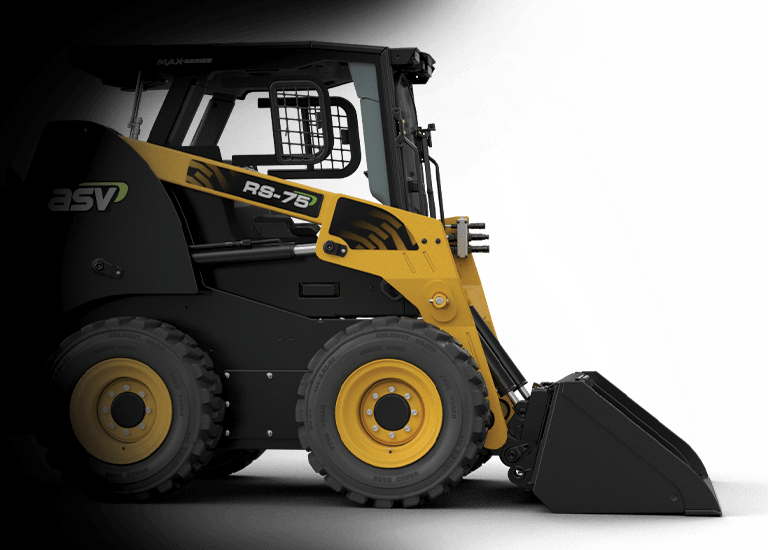

Performance

This system is designed to utilize large lines, hydraulic coolers and direct-drive pumps. The engine that powers the RS-75 won’t lose power when running attachments with the optional high-flow auxiliary hydraulic system. Overall, it delivers flow of 30.9 gallons per minute and pressure of 3,335 pounds per square inch. This reliable machine comes with standard hydraulic stick controls and quick-attach for attachments.

Skid Steer Interior

Comfort

Built with a next-generation MAX-Series cab, the RS-75 features plenty of creature comforts that let operators work more comfortably for longer periods of time: more all-around space, improved ergonomics, an upgraded HVAC system for better circulation and defrosting, standard joystick controls and an optional all-weather pressurized cab for a cleaner operator environment.

RS-75 Skid Steer Serviceability

Serviceability

To save you time, the engine, filters and other daily check points can be accessed through a swing open access door. All of the pins have zerk fittings easily accessed on the outer end of the pin to make greasing easier and the drive hubs don’t require maintenance because of their standard metal-face seals.

Some features shown may not be included in the base configuration.

RS-75 Specifications

Operations

Loader ArmsRadial
Operating Weight7595 lbs3445 kg
Rated Operating Capacity @ 50%2600 lbs1179 kg
Engine Power74.2 hp55 kW
Tipping Load5200 lbs2358 kg
Max. Travel Speed with 2 Speed11 mph17.7 kph
Height to Bucket Pin125 in.2997 mm
Dump Height at Bucket Discharge100 in.2540 mm
Dump Reach at Bucket Discharge25 in.635 mm
Maximum Dump Angle at Full Height34 Degrees34 Degrees
Rear Angle of Departure24 Degrees24 Degrees
Bucket Roll Back at Ground Level25 in.635 mm
Ground ClearanceUnloaded 10.5 in. / Loaded 10 in.Unloaded 267 mm / Loaded 254 mm
Overall Length with Bucket145 in.3683 mm
Shipping Weight6610 lbs2998 kg
Max. Travel Speed with 1 Speed8.1 mph13.1 kph

Engine

FeaturesDiesel 4-cylinder, Turbocharged Deutz TD2.9L4, Mechanically-Driven Fan and Coolant, Anti-Freeze Filled Radiator Cooling System, Dual Stage Intake Air Cleaner, Block Heater
Meet All Emission Standards for MarketsUSA and Canada
Engine Power74.2 hp55 kW
Displacement177 in.32.9 L
Gross Horsepower74.2 hp55 kW
Torque Peak192 ft-lb260 Nm

Drive Train

FeaturesHydrostatic Drive System, Bow Tie Drive System Chain Case
Chain Size100 ANSI100 ANSI
Wheel Size12 x 16.5 in.304.8 x 419.1 mm
Outside Tire Width72 in.1828.8
Tractive Effort8546 lbs3876.4 kg
Wheel Base49 in.1244.6 mm

Auxiliary Hydraulic

FeaturesPilot Hydraulic Joystick Control, Attachement Control Kit
Maximum System Pressure3335 psi230 bar
Auxiliary Hydraulic Connections2 flat face, 1/2 inch. 1 flat face 3/8 case drain12.7 mm. 9.525 mm case drain
Auxiliary Pump Flow21.3 gpm80.6 lpm

Electrical System

FeaturesUpgradeable Wiring Harness
Nominal Charge12 V12 V
Battery800 CCA800 CCA
Alternator Charging System95 Amp95 Amp
Port Outlet (Inside Operators Cab)1 - 12 V1 - 12 V

Operator Station

FeaturesOpen ROPS, Suspension Seat w/2
Loader ControlRight-hand pilot hydraulic joystick controls loader lift/tilt, with variable control of aux hyd
Drive ControlLeft-hand pilot hydraulic joystick controls, machine speed and direction
Multifunctional DisplayFuel, Tachometer, Engine Temperature, Engine Hours, Battery, Two Speed, Hydraulic Temperature, Engine Oil Pressure, Trip Hours and Multiple
ROPS/FOPSMeets ISO 3471, ISO 6683, ISO 3449
Illumination2 Forward Facing Lights, 2 Rear Facing Lights

Service Capacity

Fuel Tank28 gal106 L
Hydraulic Tank10 gal37.9 L
Engine Coolant5 gal18.9 L
Engine Oil (Including Filter)9 quarts8.5 L

Dimensions

Dimensions

  1. 146 in.3708 mm
  2. 125 in.2997 mm
  3. 84 in.2134 mm
  4. 72 in.1823 mm
  5. 10.5 in.267 mm
