Overview
More Power is Our Mission
The VT-70 High Output option is the best choice for lift-and-carry tasks—especially in construction, landscaping, and excavation applications. Operators will experience a lift in productivity too. With the extended reach of the vertical lift and a high output hydraulic system, even big jobs seem small.
Features
High Output in Every Way
![MAX-Series VT-70 Compact Track Loader High Output Hauling Blocks](https://www.asvi.com/wp-content/uploads/2019/05/VT70_power-768x550.jpg?x95123)

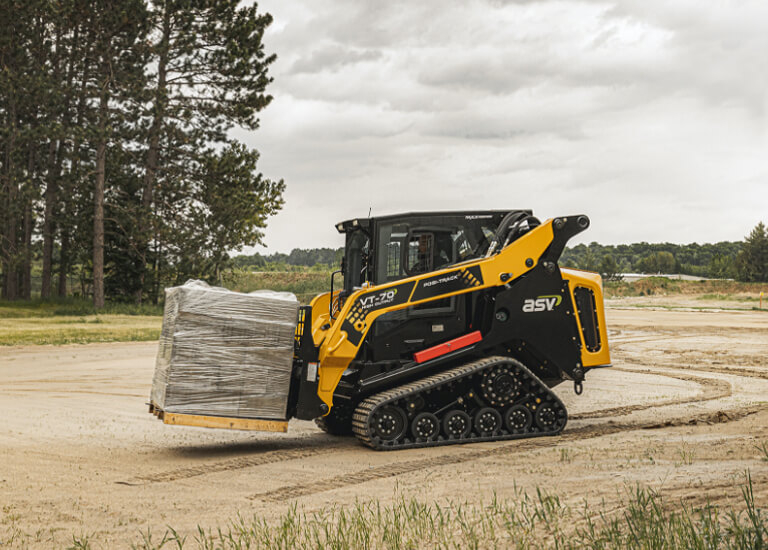

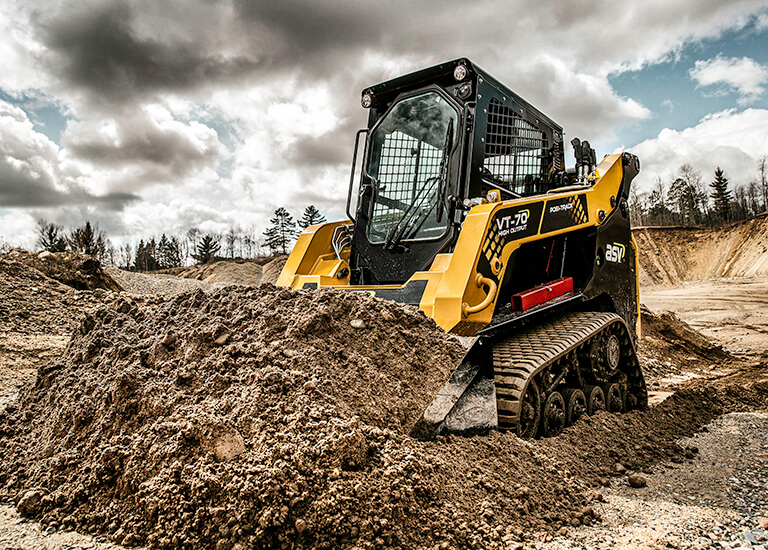

Power
The ASV VT-70 High Output features a turbocharged 74.3-horsepower Deutz 2.2-liter diesel engine. The machine’s direct-drive pumps optimize performance (compared to belt-driven pump systems) allowing the machine to run attachments more efficiently than even higher-horsepower competitive units. Internal rollers prevent friction loss in the undercarriage, and since the undercarriage is separate from the chassis, you get greater pushing power, traction and efficiency.
![MAX-Series VT-70 Compact Track Loader High Output with Breaker](https://www.asvi.com/wp-content/uploads/2019/05/VT70_performance-768x550.jpg?x95123)

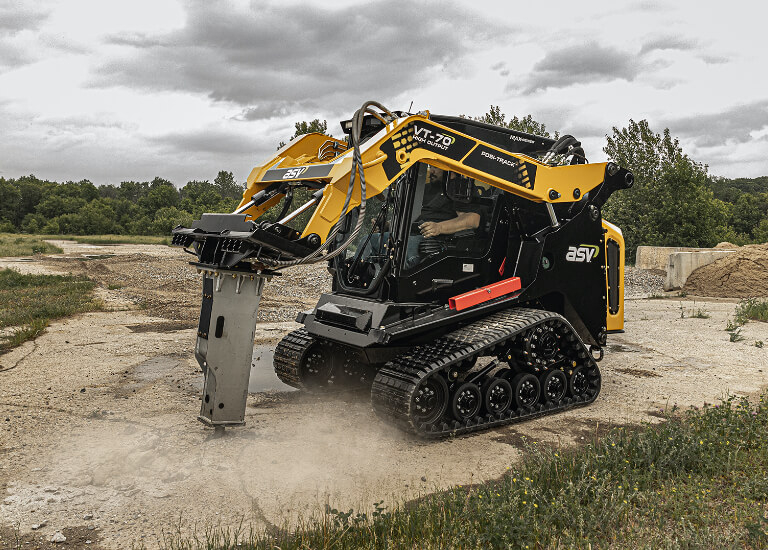

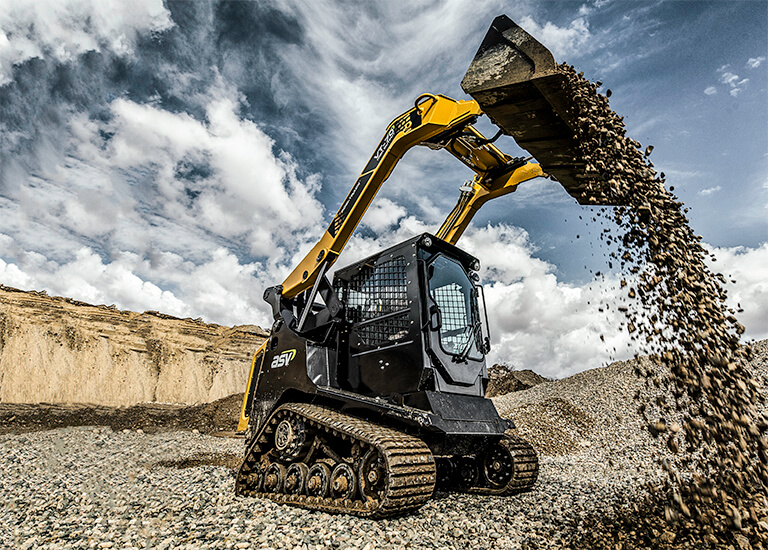

Performance
This machine’s robust hydraulic system allows for optimal performance and efficiency. Large line sizes, hydraulic coolers and direct-drive pumps enable operators to run a variety of demanding attachments more easily. Comparatively, the VT-70 High Output’s auxiliary hydraulic system optimizes power flow, while competing units can lose as much as 30 percent of their horsepower doing the same tasks.
![Compact Track Loader Interior](https://www.asvi.com/wp-content/uploads/2018/10/VT70_comfort-768x550.jpg?x95123)

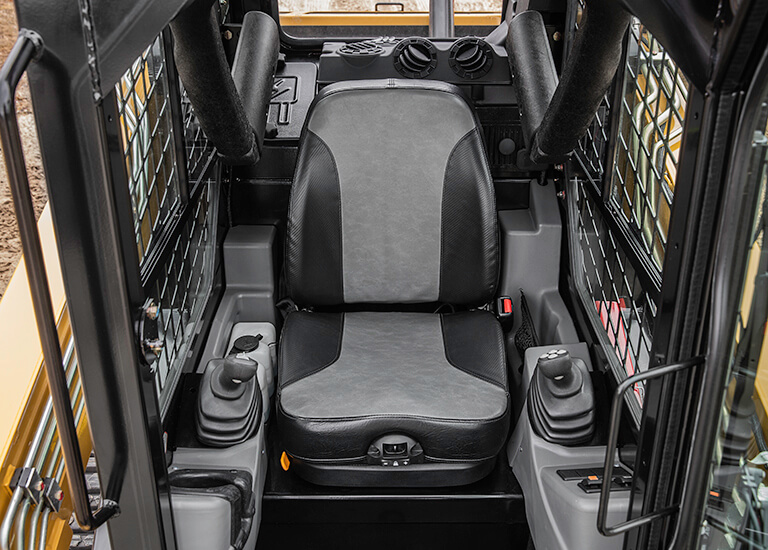

Comfort
The VT-70 High Output features next-generation MAX-Series features. Along with the smooth ride from our patented Posi-Track system, the sealed, pressurized cabin comes standard with more all-around space, improved ergonomics, air conditioning, heat and a Bluetooth radio. The operator seat is adjustable, suspended and loaded with features to provide maximum comfort. Plus, an optional air ride seat is available for additional comfort and a rearview camera and monitor boost safety and visibility.
![Compact Track Loader Service](https://www.asvi.com/wp-content/uploads/2019/05/ASV6430_0454_service.jpg?x95123)

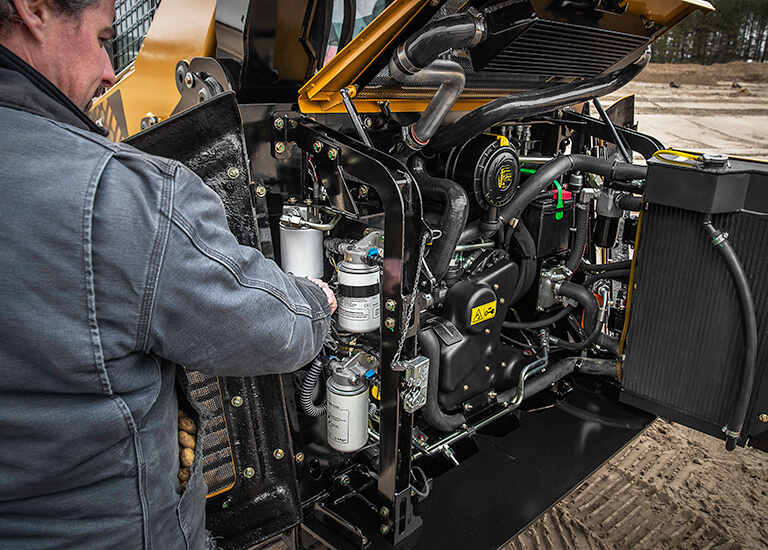

Serviceability
Because your time is valuable, we built the VT-70 High Output with serviceability in mind. This machine is built with a three-panel hood arrangement that has two fold down side doors and a swing out radiator. You get easy access to your daily service points including the air filter, battery, and oil filter. The VT-70 High Output has a direct drive pump and boasts an industry-leading cooling package, so you can run hard without overheating day after day.
Standard Features Comparison
15" Wide Tracks
15" Wide Tracks
ASV VT-70 High Output
Bobcat T595
Takeuchi TL8
Cat 259D
Torsion Axle Suspension
Torsion Axle Suspension
ASV VT-70 High Output
Bobcat T595
Takeuchi TL8
Cat 259D
All-Terrain, All-Season Track with Bar Pattern
All-Terrain, All-Season Track with Bar Pattern
ASV VT-70 High Output
Bobcat T595
Takeuchi TL8
Cat 259D
2300 LB ROC Counterweight Package
2300 LB ROC Counterweight Package
ASV VT-70 High Output
Bobcat T595
Takeuchi TL8
Cat 259D
Some features shown may not be included in the base configuration.
VT-70 High Output Specifications
Operations
Loader Arms | Vertical | |
---|---|---|
Operating Weight | 8035 lbs | 3645 kg |
Rated Operating Capacity @ 35% | 2328 lbs | 1061 kg |
Rated Operating Capacity @ 50% | 3340 lbs | 1515 kg |
Ground Pressure | 4.5 psi | 31.0 kPa |
Engine Power | 74.3 hp | 55.4 kW |
Tipping Load | 6,680 lbs | 3,030 kg |
Travel Speed, Maximum - 1st Speed | 7.4 mph | 11.9 kph |
Travel Speed, Maximum - 2nd Speed | 10.6 mph | 17.1 kph |
Engine
Model | Deutz TCD 2.2 T4 |
---|---|
Type | Diesel, 3-Cylinder, Aftercooled, Turbocharged |
Cooling System | Temperature-Controlled Variable Speed Hydraulically-Driven Fan and Coolant/Anti-Freeze-Filled Radiator |
Intake Air Cleaner | Dual Stage |
Emission Controls | Meets All U.S. EPA Tier 4 Final Standards |
Engine Power | 74.3 hp | 55.4 kW |
---|---|---|
Displacement | 134.3 in.3 | 2.2 L |
Gross Power Rating @2600 rpm | 74.3 hp | 55.4 kW |
Torque, Peak | 207 ft-lb | 280 Nm |
Drive Train
Track Type | General Purpose Track Constructed of Rubber Compound with Embedded Co-Polymer Cords and All-Purpose Treads |
---|---|
Drive System | Two Hydrostatic Direct Drive Sprockets Controlled by a Single Joystick |
Track Drive Sprockets | Elevated with Low-Friction, Replaceable Sprocket Rollers |
Undercarriage Suspension | Two Independent Torsion Axles per Undercarriage |
Roller Wheels | 24 High-Density Polyurethane and Rubber Wheels per Track, Wheels Include Sealed Bearings |
Track Width | 15 in. | 381 mm |
---|---|---|
Length of Track on Ground | 59 in. | 1,499 mm |
Ground Contact Area | 1,770 in squared | 1.14 m squared |
Front and Rear Wheels | 14 in. | 355.6 mm |
Middle Wheels | 10 in. | 254 mm |
Auxiliary Hydraulic
Controls | Variable Flow via Joystick Rocker Switch, or Continuous via Console Switch |
---|---|
Couplers | Push-To-Connect Quick Couplers Mounted on Loader Arms, Pressure Relief Valve Mounted to Coupler Block |
Cooling System | High Efficiency Side-By-Side Radiator and Oil Cooler |
Auxiliary Pump Low Flow | 22.9 gpm | 86.7 lpm |
---|---|---|
Auxiliary Pump High Flow | 27.9 gpm | 105.6 lpm |
System Pressure, Max | 3,300 psi | 22,753 kPa |
Auxiliary Hydraulic Connections | 2 flat face, 1/2 inch. 1 flat face 3/8 case drain | 12.7 mm. 9.525 mm case drain |
Electrical System
Wiring | Pre-Wired for All Factory-Available Accessories |
---|
Nominal Charge | 12 V | 12 V |
---|---|---|
Battery | 800 CCA | 800 CCA |
Charging System | 120 Amp Alternator | 120 Amp Alternator |
Outlets | 1-12 V Port Inside Operator Station | 1-12 V Port Inside Operator Station |
Operator Station
Features | Horn, Backup Alarm |
---|---|
Seat | Adjustable Position Vinyl Mechanical Suspension Seat with Recline, Slide Adjustment, Built-in Operator Presence Switch, Lap Bar and 2 in. (51 mm) Wide Seat Belt |
Loader Control | Right-Hand Pilot Hydraulic Joystick Controls Loader Lift, Lower and Tilt, Plus Variable Control of Auxiliary Hydraulic |
Drive Control | Left-Hand Pilot Hydraulic Joystick Controls Machine Speed and Direction |
Engine Speed | Hand-operated Dial |
Deluxe Machine Display | Engine RPM, Engine Coolant Temperature, Engine Oil Pressure, Hydraulic Oil Temperature, Battery Voltage, Hour Meter, Fuel Level, Trip Meter, Engine Diagnostics, System Monitoring, Fault Logging and More |
ROPS | Restraint-ISO 6683, SAE J2292, Cal OSHA 1596, ISO 3471 |
FOPS | Meets ISO 3449: Level I and II (Optional) |
Illumination | 2 Adjustable Forward-Facing Halogen Lights, 2 Adjustable Rear-Facing Halogen Lights, 1 Interior Light |
Convenience | 12 V Power Port |
Service Capacity
Fuel Tank | 23.2 gal | 87.8 L |
---|---|---|
Hydraulic Tank | 3.3 gal | 12.5 L |
Engine Coolant/Antifreeze | 3.3 gal | 12.5 L |
Engine Oil, Including Filter | 8.5 quarts | 8 L |
Dimensions
Dimensions
- 141.5 in3,594 mm
- 126.5 in3,213 mm
- 81.4 in2,068 mm
- 65.6 in1,666 mm
- 13 in330 mm
