VT-100 Compact Track Loader

Leading Productivity and Technology

The hard-hitting MAX-Series™ VT-100 gives you the tools to improve productivity while working comfortably. The vertical-lift machine excels in loading and grading applications in landscaping and construction.



Quick Specs

USMetric

Brief

Loader Armscompact-track-vertical
Operating Weight10345 lbs4692 kg
Rated Operating Capacity3500 lbs1588 kg
Ground Pressure4.0 psi27.6 kPa
Engine Power103.5 hp77.2 kW

Innovative and Powerful

From an efficient, reliable and powerful 103.5 hp Yanmar engine to numerous new technology features such as auto 2-speed, loader and bucket return to positioning, speed-sensitive ride control and more, the VT-100 is a hard-hitting jobsite addition.

Features

Elevated Performance

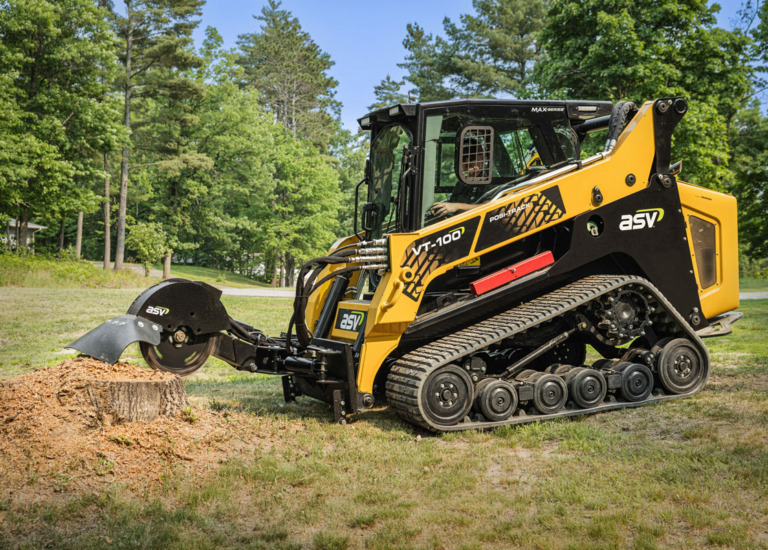

VT-100 Compact Track Loader with stump grinder attachment

Power

A 103.5 horsepower Tier 4 Final Yanmar diesel engine and standard 40 gpm high flow delivers maximum power. Large line sizes, hydraulic coolers and direct-drive pumps transfer more flow and pressure directly to the attachment and reduce power loss. The VT-100 features a 3,500-pound rated operating capacity and 10,000-pound tipping load.

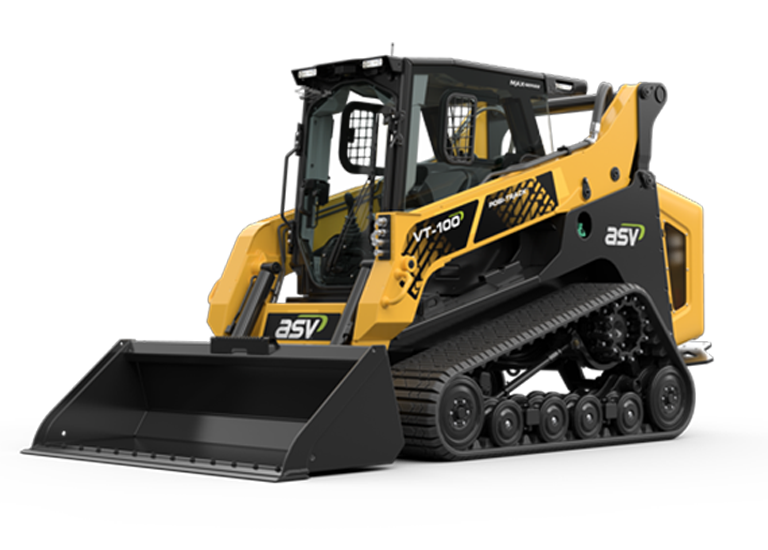

VT-100 Compact Track Loader

Performance

Improve jobsite productivity with intuitive features that make the VT-100 easier – and more enjoyable – to use. Pair that with ASV’s patented Posi-Track® rubber-track suspension and suspended wheels and axles, allowing it to achieve faster speeds. It adds up to high travel speeds of up to 9.3 mph and a low 4.0 psi ground pressure for improved performance.

RT-135 Compact Track Loader cab

Comfort

Premium 360-degree visibility and a state-of-the-art 7-inch color display improve convenience on the jobsite. The display provides vital monitoring tools, shows the view from the backup camera, and integrates with service schedules and history for added convenience. The fully adjustable suspended seat and smooth ride allowed by ASV’s Posi-Track undercarriage contributes to more comfort on bumpy terrain. Additionally, the VT-100 includes optional ride control.

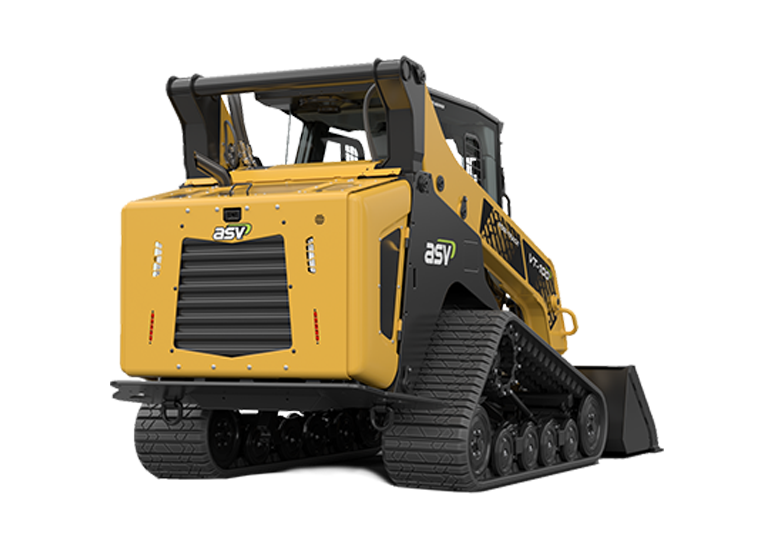

VT-100 Compact Track Loader - Back Right 3/4 View

Serviceability

ASV stands behind the reliability of its Posi-Track loaders with an industry-leading 2-year, 2,000-hour warranty. The warranty includes the industry’s first and only no-derailment guarantee and covers the tracks for the entire warranty period. The new compact track loader also incorporates Yanmar’s optional SmartAssist telematics system with features ranging from error detection and notification to real-time operational status updates, daily work reports and integrated theft protection.

Standard Features Comparison

Adjustable Controls

Adjustable Controls

ASV VT-100

Bobcat T870

Takeuchi TL12R2

Case TV620B

40 GPM/ 4060 PSI High Flow

40 GPM/ 4060 PSI High Flow

ASV VT-100

Bobcat T870

Takeuchi TL12R2

Case TV620B

7-Inch Color Touch Display

7-Inch Color Touch Display

ASV VT-100

Bobcat T870

Takeuchi TL12R2

Case TV620B

Dual-Level Suspension

Dual-Level Suspension

ASV VT-100

Bobcat T870

Takeuchi TL12R2

Case TV620B

Some features shown may not be included in the base configuration.

VT-100 Specifications

Operations

Loader ArmsVertical
Operating Weight10345 lbs4692 kg
Rated Operating Capacity @ 35%3500 lbs1588 kg
Ground Pressure4.0 psi27.6 kPa
Engine Power103.5 hp77.2 kW
Loader ArmsVerticalVertical
Operating Weight (Open Cab)10345 lbs4692 kg
Operating Weight (Closed Cab)10835 lbs4915kg
Ground Pressure at Operating Weight4.0 psi27.6 kPa
Rated Operating Capacity (35% Of Tipping Load)3500 lbs1588 kg
Tipping Load10000 lbs4536 kg
Travel Speed, Maximum9.3 mph14.9 kph

Engine

TypeDiesel 4-cylinder, Intercooled Turbo
ModelYanmar 4TNV94FHT
Cooling SystemHydraulically-driven fan and anti-freeze filled radiator cooling system
Intake Air CleanerThree-stage
Emission ControlsMeets all U.S. EPA Tier 4 final standards
Engine Power103.5 hp77.2 kW
Displacement3.1 L3.1 L
Gross Horsepower103.5 hp77.2 kW
Torque Peak291 ft-lb395 Nm

Drive Train

Track TypeGeneral purpose track constructed of rubber compound with embedded co-polymer cords and all-purpose treads
Drive SystemTwo hydrostatic direct drive sprockets controlled by a single joystick
Track Drive SprocketElevated with low friction, replaceable sprocket rollers
Undercarriage SuspensionTwo independent torsion axles per undercarriage
Roller Wheels24 high-density polyurethane and rubber wheels per track. Wheels include sealed bearings
Track Width18 in.457 mm
Length of Track on the Ground71 in.1803 mm
Ground Contact Area2556 in.21.65 m2
Roller Wheel Diameter Front & rear wheels15 in381 mm
Roller Wheel Diameter Middle Wheel10 in254 mm

Auxiliary Hydraulic

ControlsIntermittent via joystick button or continuous via console switch. High-flow is adjustable.
CouplersFlat Faced Couplers: 1/2 in. low flow, 3/4 in. high flow
Cooling SystemHigh efficiency side-by-side radiator and oil cooler
Pump Capacity Low23 gpm87 lpm
Pump Capacity High41 gpm155 lpm
System Pressure Max Low3481 psi24000 kPa
System Pressure Max High3989 psi27503 kPa

Electrical System

Standard FeaturesBlock heater
Outlets1 -12 V port inside operator station
WiringUpgradeable wiring harness
Charging System80 amp alternator
Nominal Charge12 V12 V
Battery950 CCA950 CCA

Operator Station

SeatMechanical suspension seat with 2 in. seat belt
ControlsElectronic joystick controls with ISO or H pattern settings, adjustable operator profiles and speeds
CabROPS or All Weather Cab with curved glass door
Engine SpeedStandard foot pedal with hand dial option
FOPSISO 3449 Level 1 (level 2 optional), emergency roof exit
ROPSROPS: ISO 3471, Restraint-ISO 6683, SAE J2292, Cal OSHA 1596
Illumination2 - Forward-facing LED lights, 2 - Rear-facing LED lights
Standard FeaturesROPS with mechanical suspension seat, adjustable pilot controls, 7-in. deluxe color display, foot throttle, cupholder, phone holder, roof panel, roof insulation, rear window, two speed, high flow, Hyd Q/A, attachment control kit, Dual Direction Bucket Positioning
7-IN. Color Machine DisplayFuel, tachometer, engine temp, hour meter, battery, trip meter, hydraulic temperature, water temperature, multiple languages

Service Capacity

Fuel Tank34 gal128.7 L
DEF Capacity5 gal18.9 L

Dimensions

Compact Track Loader dimensional diagram

Dimensions

  1. 154 in.3912 mm
  2. 132 in.3353 mm
  3. 83.5 in.2121 mm
  4. 76 in.1930 mm
  5. 15 in.381 mm
