RT-75 Compact Track Loader

Power and Traction Perfected

The RT-75 is revolutionizing the compact track loader industry with next-generation MAX-Series features, patented Posi-Track® technology, longer run time and less maintenance. The 75’s provide the industry’s highest ground clearance, lowest ground pressure, longest track life and best traction over all types of surfaces, from brush and mud to snow and ice.



Quick Specs

USMetric

Brief

Loader Armscompact-track-radial
Operating Weight9060 lbs4110 kg
Rated Operating Capacity2750 lbs1247 kg
Ground PressureStandard Track: 3.5 psiStandard Track: 24.1 kPa
Engine Power74.0 hp55 kW

OVERVIEW

More Machine For When You Need It

The design ensures our customers have a machine built for maximum durability, serviceability and productivity in rough and dirty applications.

Features

Take On More

RT-75 Compact Track Loader

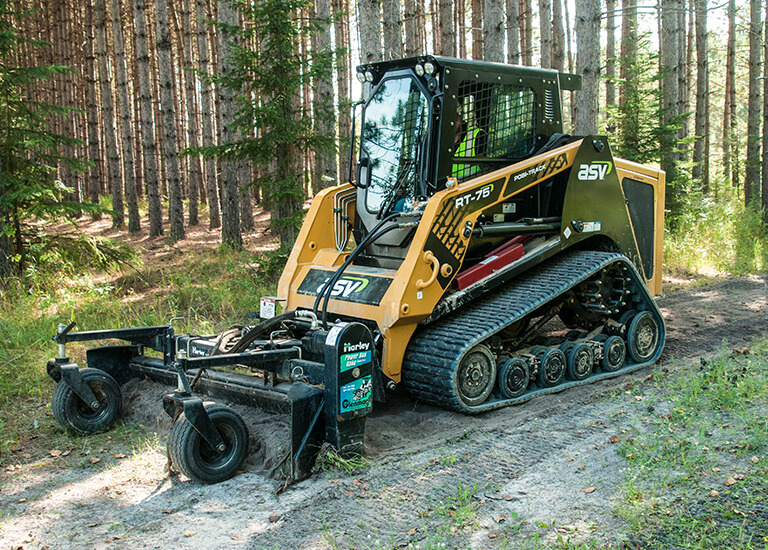

Power

The RT-75 features a Cummins 2.8-liter turbocharged diesel engine. The 75-horsepower engine produces 221 foot-pounds of torque—13 percent more than the machine’s 80-horsepower predecessor. The torque is transferred to the ground through direct-drive hydraulic motors. And there’s a Heavy-Duty version of the RT-75 that delivers maximum power, without compromise, during high intensity jobs.

RT RT-75 Compact Track Loader with Grapple

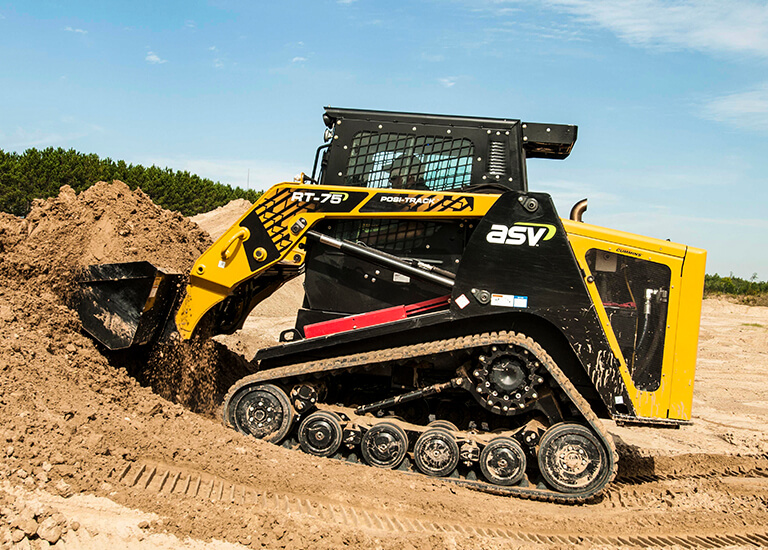

Performance

ASV built the RT-75’s auxiliary hydraulic system to be highly efficient, including 35.7 gpm high flow and 3,300 psi. Because the machine includes larger line sizes, hydraulic coolers and direct-drive pumps—rather than belt-driven pumps, preventing power loss—more flow and pressure is transferred directly to the attachment.

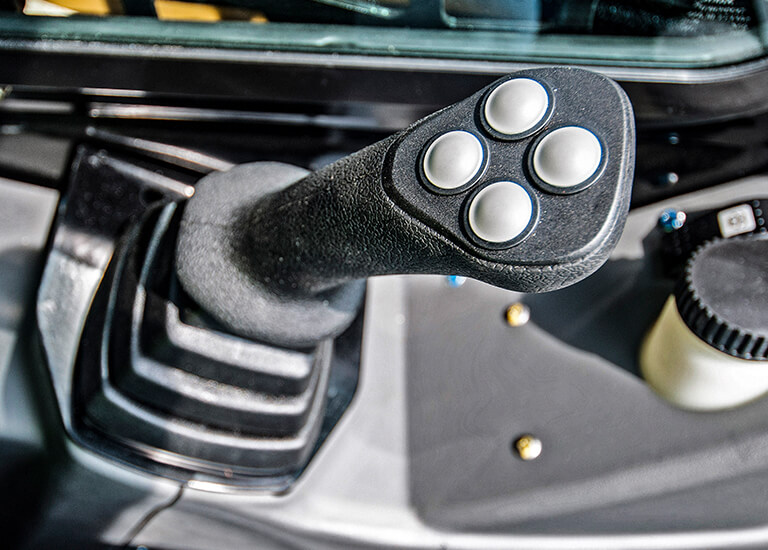

Compact Track Loader Interior

Comfort

With a next-generation MAX-Series cab, the RT-75 features plenty of creature comforts that let operators work more comfortably for longer periods of time: more all-around space, improved ergonomics, an upgraded HVAC system for better circulation and defrosting, standard joystick controls and an optional all-weather pressurized cab for a cleaner operator environment.

Compact Track Loader Serviceability

Serviceability

ASV designed the machine with serviceability in mind, giving operators easy access to the reliable Cummins engine through a three-panel hood and tilting cooler arrangement. The design, paired with sight gauges for both hydraulic oil and coolant, simplify routine inspections of filters, oil and normal service items. The rearward tilting cab provides easy accessibility when further service is required and the RT-75 can be paired with all standard attachments, such as backhoes, buckets, snow blades, brush cutters and pallet forks.

Standard Features Comparison

18" Wide Tracks

18" Wide Tracks

ASV RT-75

Bobcat T630

Cat 279D

Kubota SVL75-2

Torsion Axle Suspension

Torsion Axle Suspension

ASV RT-75

Bobcat T630

Cat 279D

Kubota SVL75-2

Bogie Wheel Suspension

Bogie Wheel Suspension

ASV RT-75

Bobcat T630

Cat 279D

Kubota SVL75-2

Temperature Sensing Hydraulic Fan

Temperature Sensing Hydraulic Fan

ASV RT-75

Bobcat T630

Cat 279D

Kubota SVL75-2

Some features shown may not be included in the base configuration.

RT-75 Specifications

Operations

Loader ArmsRadial
Operating Weight9060 lbs4110 kg
Rated Operating Capacity @ 35%2750 lbs1247 kg
Rated Operating Capacity @ 50%3929 lbs1782 kg
Ground PressureStandard Track: 3.5 psiStandard Track: 24.1 kPa
Engine Power74.0 hp55 kW
Tipping Load7857 lbs3564 kg
Max. Single Speed Travel Speed6.3 mph10.1 kph
Max Travel Speed with 2 Speed9.3 mph15 kph
Height to Bucket Pin125.5 in.3188 mm
Dump Height at Bucket Discharge96 in.2438 mm
Rear Angle of Departure38 Degrees38 Degrees
Bucket Roll Back at Ground Level41 Degrees41 Degrees
Ground Clearance14.4 in.366 mm
Overall Length with Bucket148 in.3759 mm
Reach at Dump Height24 in.610 mm
Optional Track Ground Pressure3.2 psi22 kPa

Engine

FeaturesDiesel 4-cylinder, Intercooled Turbo, Cummins QSF2.8, Hydraulically Driven Fan, Anti-Freeze Filled Radiator Cooling System, Dual Stage Intake Air Cleaner, Block Heater
Emissions ControlsMeets All U.S EPA Tier 4 Final Standards
Engine Power74.0 hp55 kW
Displacement171 in.32.8 L
Gross Horsepower74.0 hp55 kW
Torque Peak221 ft-lb300 Nm

Drive Train

FeaturesDual Hydraulic Drive Motors, 2 Independent Torsion Axle Suspension
Track Width18 in457 mm
Length of Track on the Ground71 in1803 mm
Ground Contact Area2556 in.21.65 m2
Roller Wheels24 High Density Polyurethane wheels per track48 High Density Polyurethane
Front & Rear Rollers15 in381 mm
Mid-Rollers10 in254 mm

Auxiliary Hydraulic

FeaturesPilot Hydraulic Joystick Control, Manual Quick Attach
Maximum System Pressure3300 psi22750 kPa
Auxiliary Hydraulic Connections2 flat face, 1/2 inch. 1 flat face 3/8 case drain12.7 mm. 9.525 mm case drain
Auxiliary Pump Low Flow22.6 gpm85.5 lpm
Auxiliary Pump High Flow35.7 gpm135 lpm

Electrical System

FeaturesUpgradeable Wiring Harness, Attachment Control Kit
Nominal Charge12 V12 V
Battery950 CCA950 CCA
Alternator Charging System120 Amp120 Amp
Port Outlet (Inside Operators Cab)1 - 12 V1 - 12 V

Operator Station

FeaturesROPS, Mechanical Suspension Seat w/ 2
Loader ControlRight-hand pilot hydraulic joystick controls, loader lift/tilt, with variable control of auxiliary hydraulics
Drive ControlLeft-hand pilot hydraulic joystick controls, machine speed and direction
Multifunctional DisplayFuel, Tachometer, Engine Temperature, Hour Meter, Battery, Trip Meter, Hydraulic Temperature, Water Temperature, Multiple Languages
ROPSRestraint-ISO 6683, SAE J2292, Cal OSHA 1596, ISO 3471
FOPSMeets ISO 3449: Level I and II (Optional)
Illumination2 Forward Facing Lights, 2 Rear Facing Lights

Service Capacity

Fuel Tank18.4 gal69.7 L
Hydraulic Tank8 gal30.3 L
Engine Coolant5.5 gal20.8 L
Engine Oil (Including Filter)9 quarts8.5 L

Dimensions

compact track loader outline

Dimensions

  1. 148 in.3759 mm
  2. 125.5 in.3188 mm
  3. 87 in.2210 mm
  4. 70 in.1778 mm
  5. 14.4 in.366 mm
Compact track loader tracks
