RT-65 Compact Track Loader

Reliable and Ready to Work

Built with next-generation MAX-Series features and patented Posi-Track® technology, the RT-65 is a premium mid-size loader that features maximum power, comfort and serviceability—which leads to more productivity.



Quick Specs

USMetric

Brief

Loader Armscompact-track-radial
Operating Weight7480 lbs3393 kg
Rated Operating Capacity1925 lbs873 kg
Ground Pressure4.2 psi29.0 kPa
Engine Power67.0 hp50 kW

Less Downtime. More Go Time.

The RT-65 is designed to deliver maximum serviceability, reliability and productivity. With ASV’s patented Posi-Track® undercarriage, this machine is built for digging and ground engagement work in construction, excavation, landscaping and snow-clearing applications.

Features

Get Everything You Need

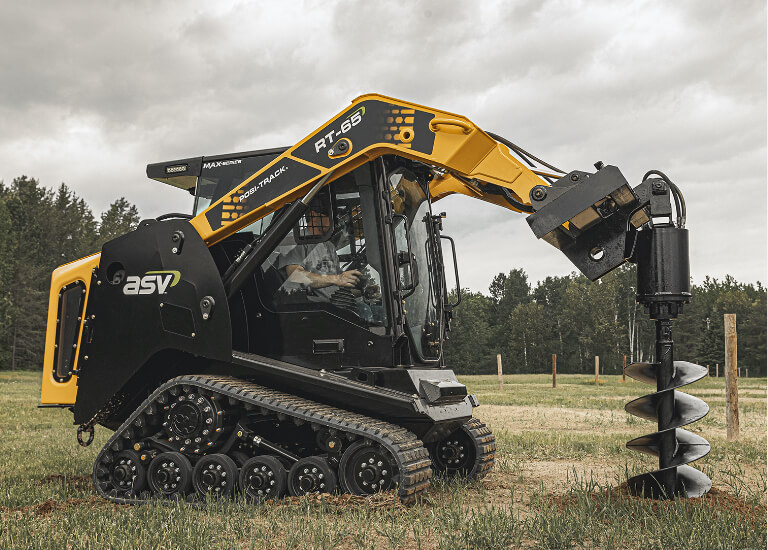

RT-65 MAX-Series Compact Track Loader Auger Drilling

Power

Its turbocharged 67-horsepower Deutz TCD 2.2 T4-liter diesel engine produces 184.4 foot-pounds of torque that the drive motors transfer to ASV’s patented internal-drive sprockets. Internal rollers reduce friction loss in the undercarriage, resulting in maximum power being transferred to the track regardless of drive speed. The RT-65 tops out at a speed of 11 MPH.

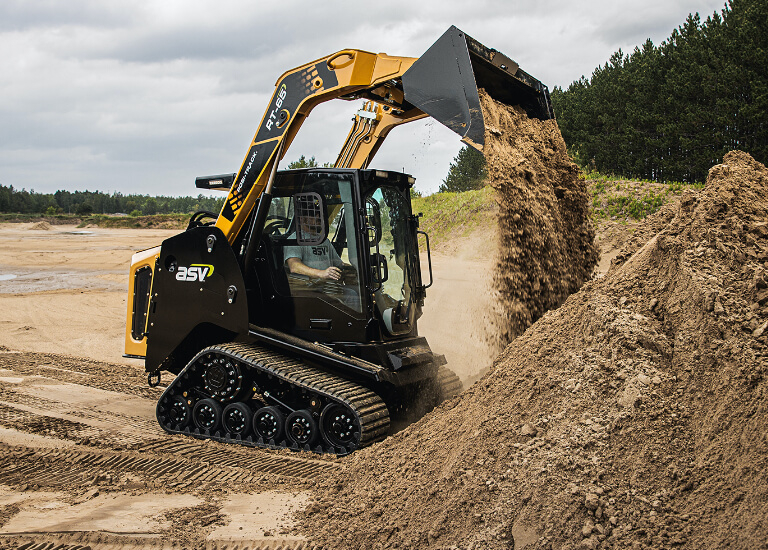

RT-65 MAX-Series Compact Track Loader Dumping

Performance

The RT-65 features a rated operating capacity of 1,925 pounds and a tipping load of 5,500 pounds. The machine is 66” wide, provides excellent maneuverability and has a 116.5-inch lift height. The innovative Posi-Track system featured on the RT-65 allows customers to use it as an all-terrain, all-season machine with maximum control, flotation, traction and pushing power in steep, wet, muddy and slippery conditions.

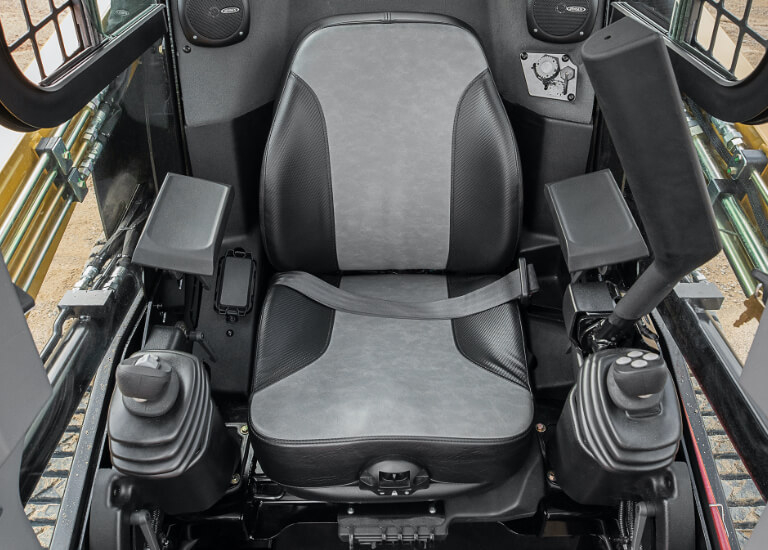

RT-65 MAX-Series Compact Track Loader Cab Interior

Comfort

The RT-65 features a suspension system made up of two independent torsion axles per undercarriage and a suspended air ride seat so operators experience a smooth ride over every type of terrain on a variety of jobsites. And with next-generation MAX-Series features, the RT-65 offers plenty of creature comforts that let operators work more comfortably for longer periods of time: more all-around space, improved ergonomics, an upgraded HVAC system for better circulation and defrosting, and an optional all-weather pressurized cab for a cleaner operator environment.

Compact Track Loader Service

Serviceability

The RT-65 boasts industry-leading serviceability. We do this so operators can spend less time maintaining the machine and more time on the job. The features that keep operators moving include a swing-out radiator, top hood and side doors that allow access to all sides of the engine compartment—including filters and other daily checkpoints.

Standard Feature Comparison

15" Wide Tracks

15" Wide Tracks

ASV RT-65

Bobcat T550

Takeuchi TL6R

Cat 239D

Torsion Axle Suspension

Torsion Axle Suspension

ASV RT-65

Bobcat T550

Takeuchi TL6R

Cat 239D

All-Terrain, All-Season Track with Bar Pattern

All-Terrain, All-Season Track with Bar Pattern

ASV RT-65

Bobcat T550

Takeuchi TL6R

Cat 239D

Push Button Easy Release Quick Coupler Block

Push Button Easy Release Quick Coupler Block

ASV RT-65

Bobcat T550

Takeuchi TL6R

Cat 239D

Some features shown may not be included in the base configuration.

RT-65 Specifications

Operations

Loader ArmsRadial
Operating Weight7480 lbs3393 kg
Rated Operating Capacity @ 35%1925 lbs873 kg
Rated Operating Capacity @ 50%2750 lbs1247 kg
Ground Pressure4.2 psi29.0 kPa
Engine Power67.0 hp50 kW
Tipping Load5500 lbs2495 kg
Max. Travel Speed10.6 mph17.1 kph
Height to Bucket Pin116.5 in.2959 mm
Dump Height at Bucket Discharge87.5 in.2223 mm
Rear Angle of Departure37 Degrees37 Degrees
Bucket Roll Back at Ground Level20 Degrees20 Degrees
Ground Clearance13 in.330 mm
Overall Length with Bucket141.5 in.3594 mm

Engine

FeaturesDiesel 3-cylinder, Turbo Charged, After Cooled Deutz TCD 2.2 T4, Hydraulically Driven Fan, Anti-Freeze Filled Radiator Cooling System, Dual Stage Intake Air Cleaner, Engine Block Heater
Emissions ControlsMeets All U.S EPA Tier 4 Final Standards
Engine Power67.0 hp50 kW
Displacement134.3 in.32.2 L
Gross Horsepower67.0 hp50 kW
Torque Peak184.4 ft-lb250 Nm

Drive Train

FeaturesDual Hydraulic Drive Motors, 2 Independent Torsion Axle Suspension
Track Width15 in.381 mm
Length of Track on the Ground59 in.1499 mm
Ground Contact Area1770 in21.1 m2
Roller Wheels24 High Density Polyurethane24 High Density Polyurethane
Front Roller Wheel14 in.355.6 mm
Mid Roller Wheel10 in.254 mm

Auxiliary Hydraulic

FeaturesPilot Hydraulic Joystick Control, Work Port Relief, Manual Quick Attach
Maximum System Pressure3300 psi22753 kPa
Auxiliary Hydraulic Connections2 flat face, 1/2 inch. 1 flat face 3/8 case drain12.7 mm. 9.525 mm case drain
Auxiliary Pump Low Flow22.2 gpm84.0 lpm
Auxiliary Pump High Flow27.4 gpm103.7 lpm

Electrical System

FeaturesUpgradeable Wiring Harness, Attachment Control Kit
Nominal Charge12V12V
Battery800 CCA800 CCA
Alternator Charging System120 Amp120 Amp
Port Outlet (Inside Operators Cab)1 - 12V1 - 12V

Operator Station

FeaturesROPS, Suspension Seat w/ 2 in. Seatbelt, Roof Panel, Rear Window, Sound Insulation, Horn, Backup Alarm, Lap Bar
Loader ControlRight-hand pilot hydraulic joystick controls loader lift/tilt, with variable control of auxiliary hydraulics
Drive ControlLeft-hand pilot hydraulic joystick controls machine speed and direction
Multifunctional DisplayFuel, Tachometer, Engine Temperature, Hour Meter, Battery, Trip Meter, Hydraulic Temperature, Water Temperature, Multiple Languages
ROPSRestraint-ISO 6683, SAE J2292, Cal OSHA 1596,ISO 3471
FOPSMeets ISO 3449: Level I and II (Optional)
Illumination2 Forward Facing Lights / 2 Rear Facing Lights

Service Capacity

Fuel Tank23.2 gal87.8 L
Hydraulic Tank3.3 gal12.5 L
Engine Coolant2.5 gal9.5 L
Engine Oil (Including Filter)8.5 quarts8 L

Dimensions

Compact track loader dimension diagram

Dimensions

  1. 141.5 in.3594 mm
  2. 116.5 in.2959 mm
  3. 81.4 in.2068 mm
  4. 66 in.1676 mm
  5. 13 in.330 mm
Compact track loader tracks
