RT-50 Compact Track Loader

Serious power in a smaller package

The RT-50 boasts a greater performance-to-weight ratio than any machine in its class, so you can get more power in tight areas than ever before.



Quick Specs

USMetric

Brief

Loader Armscompact-track-radial
Operating Weight5180 lbs2349 kg
Rated Operating Capacity1400 lbs635 kg
Ground Pressure3.0 psi20.7 kPa
Engine Power53.8 hp40.1 kW

Overview

Lighter, Faster, Stronger

The RT-50 touts a 1,400-pound rated operating capacity while coming in at just 5,180 pounds. Not to mention the industry's lowest ground pressure and the ability to be towed behind a ½-ton pick-up truck. This small machine packs an impressive punch for contractors, homeowners, or rental customers.

Features

Works Hard. Tows Easy.

RT-50 compact track loader

POWER

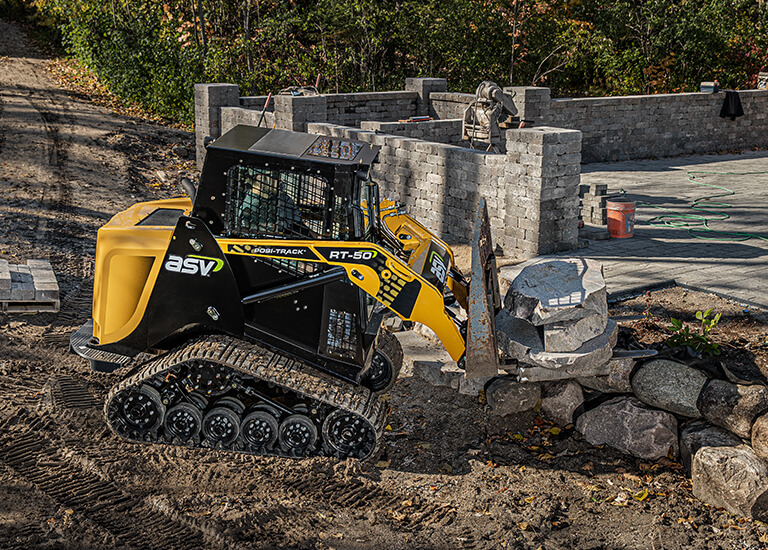

The ASV RT-50 offers exceptional digging and pushing power from its Posi-Power system combined with a 50-horsepower class diesel, 3-cylinder, turbo charged YANMAR 3TN engine. This smooth-running 3-cylinder diesel engine gives you the power you want, when you want it. And attachments are a breeze thanks to its efficient cooling system and robust hydraulic system with 3,000 psi of auxiliary pressure and 13.3 gpm flow. So you’ll get the job done faster and easier than ever before.

RT-50 compact track loader with grapple attachment

PERFORMANCE

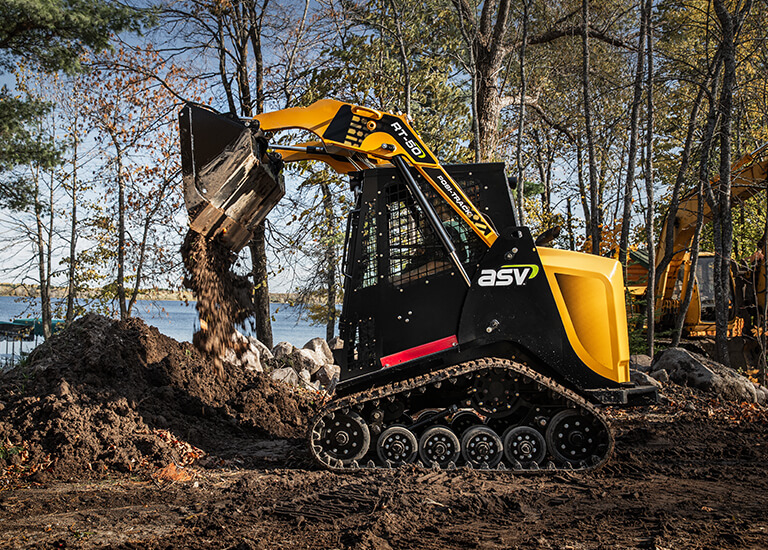

Soft ground conditions are no problem for the RT-50. With its light weight and class-leading ground pressure of only 3.0 psi, you can get to work sooner after wet weather — even on sensitive turf. This is thanks to its 15-inch-wide tracks and even weight distribution on the patented Posi-Track undercarriage. It has a 7.1 mph top-speed to get around quickly. And the loader’s 109.6-inch pin height means operators can load landscape trucks and even small dump trucks.

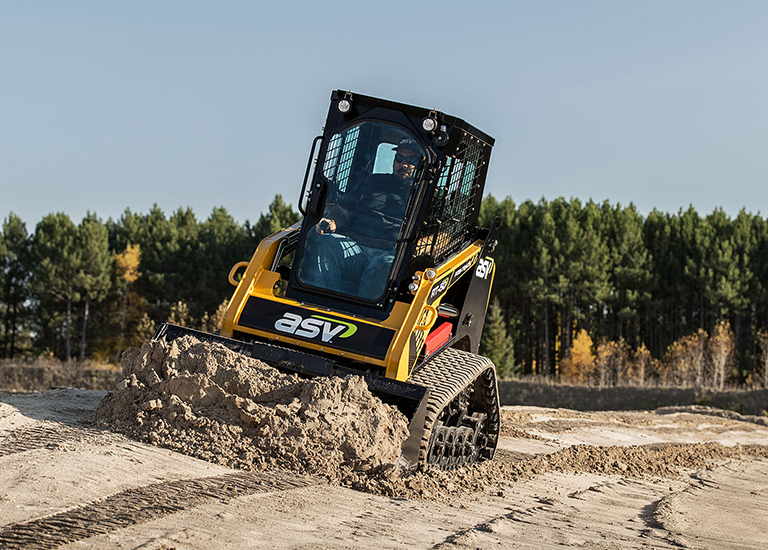

RT-50 compact track loader hauling dirt

COMFORT

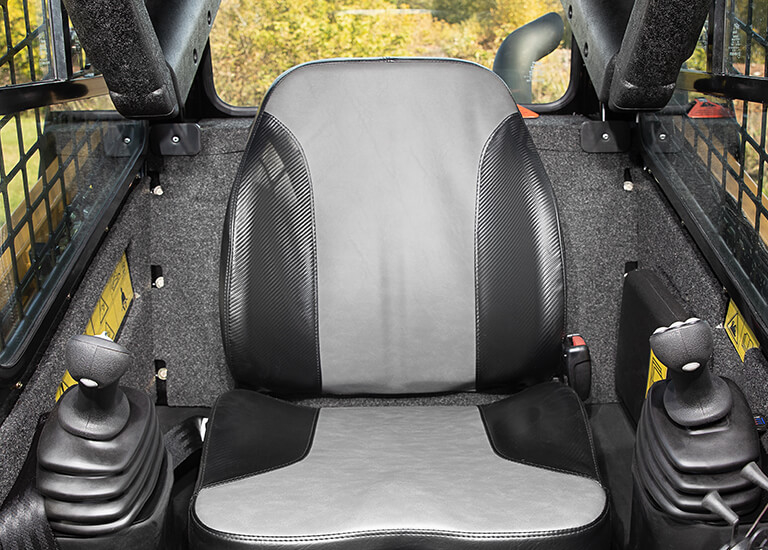

Not only does Posi-Track technology improve traction, it also improves operator comfort with a smoother ride for less fatigue during a long day in the cab. For more comfort, there’s the optional suspended seat, cold weather cab with heater or pressurized all-weather cab with heat and A/C. And because of an exceptional 14.4 inches of ground clearance, nearly double that of comparable models, you can use the RT-50 to ride over logs, rocks or snow, for all-weather productivity.

RT-50 compact track loader service

SERVICEABILITY

There's no time for downtime, so the RT-50 features easily accessible maintenance points, zerk fittings for convenient greasing and spin-on, frame-mounted filters with single-wrench service. The direct-drive pump eliminates the labor-intensive belt servicing that comes with belt-driven pumps. Individually replaceable steel sprocket rollers, as well as standard metal-face seals keep maintenance down to a minimum.

Standard Features Comparison

15" Wide Tracks

15" Wide Tracks

ASV RT-50

Cat 239D3

Bobcat T450

Gehl RT135

Torsion Axle Suspension

Torsion Axle Suspension

ASV RT-50

Cat 239D3

Bobcat T450

Gehl RT135

All-Terrain, All-Season Track with Bar Pattern

All-Terrain, All-Season Track with Bar Pattern

ASV RT-50

Cat 239D3

Bobcat T450

Gehl RT135

Heavy Duty Battery and Engine Block Heater

Heavy Duty Battery and Engine Block Heater

ASV RT-50

Cat 239D3

Bobcat T450

Gehl RT135

Some features shown may not be included in the base configuration.

RT-50 Specifications

Operations

Loader ArmsRadial
Operating Weight5180 lbs2349 kg
Rated Operating Capacity @ 35%1400 lbs635 kg
Rated Operating Capacity @ 50%2000 lbs907 kg
Ground Pressure3.0 psi20.7 kPa
Engine Power53.8 hp40.1 kW
Tipping Load4000 lbs1814 kg
Max. Travel Speed7.1 mph11.4 kph
Shipping Weight4597 lbs2085 kg

Engine

TypeDiesel, 3-cylinder, turbocharged YANMAR 3TN 86 CHT
Cooling systemEngine-driven fan and coolant/anti-freeze-filled radiator
Intake Air CleanerDual Stage
Emission ControlsMeets all U.S. EPA Tier 4 final standards
Engine Power53.8 hp40.1 kW

Drive Train

Track TypeGeneral purpose track constructed of rubber compound with embedded co-polymer cords and all-purpose treads; Two rows of internal track lugs; Turf track with smooth tread available as an option
Drive SystemTwo hydrostatic direct drive sprockets controlled by single joystick
Track Drive SprocketElevated with low-friction, replaceable sprocket rollers
Undercarriage SuspensionTwo independent torsion axles per undercarriage
Roller Wheels12 ultra-high molecular weight polyethylene and rubber wheels per track. Wheels include metal-face sealed bearings.
Front and Rear Wheels14 in.355.6 mm
Middle Wheels10 in.254 mm
Track Width15 in.381 mm
Length of track on ground57 in.1448 mm
Ground contact area1713 in. squared1.1 m squared

Auxiliary Hydraulic

ControlsVariable flow via joystick rocker switch, or continuous via console switch
CouplersPush to connect quick couplers mounted on manifold block. Pressure relief valve on block.
Cooling SystemHigh efficiency oil cooler beside engine radiator, not stacked
Pump Capacity13.3 gpm50.35 lpm
Maximum System Pressure3000 psi20684 kPa
Auxiliary Hydraulic Connections2 flat face, 1/2 inch12.7 mm

Electrical System

Nominal Charge12 V
Battery590 CCA
Charging System80 amp alternator
Outlets1-12 V port inside operator station
WiringPre-wired for all factory-available accessories
Standard FeaturesEngine block heater

Operator Station

SeatAdjustable contour vinyl seat with built-in operator presence switch, lap bar and 2 in. ( 51 mm ) wide seat belt
Loader ControlRight-hand pilot hydraulic joystick controls loader lift, lower and tilt, plus intermittent control of auxiliary hydraulic.
Drive ControlLeft-hand pilot hydraulic joystick controls machine speed and direction.
Engine SpeedHand-operated rotary throttle
Parking BrakeActuated by dash-mounted switch
Multi-Functional Color 4.3 inch Display/IndicatorEngine RPM, Engine Coolant Temperature, Engine Oil Pressure, Hydraulic Oil Temperature, Battery Voltage, Hour Meter, Fuel Level, Trip Meter, Engine Diagnostics, System Monitoring, Fault Logging and More
RopsMeets ISO 3471
FopsMeets ISO 3449
Operator Restraint AnchorageMeets ISO 6683, CAL OSHA 1596
Illuminator(2) Adjustable forward-facing LED lights, (1) Adjustable rear-facing LED light, (1) Interior light, (2) Red LED tail lights
Standard FeaturesHorn, Backup alarm

Service Capacity

Fuel Tank13 gal49.2 L
Hydraulic Tank3.5 gal13.2 L
Engine Coolant1.8 gal6.8 L
Engine Oil (Including Filter)7.4 qts7L

Dimensions

Compact track loader dimension diagram

Dimensions

  1. 126.4 in.3211 mm
  2. 109.6 in.2,784 mm
  3. 80 in.2032 mm
  4. 58.5 in. 1486 mm
  5. 14.4 in.366 mm
