RT-25 Compact Track Loader

Built Small to Do Big Work

The RT-25 is the world’s most compact track loader. The smallest machine of its kind, the RT-25 features superior suspension, minimal ground pressure and maximum productivity.



Quick Specs

USMetric

Brief

Loader Armscompact-track-radial
Operating Weight3755 lbs1703 kg
Rated Operating Capacity665 lbs302 kg
Ground Pressure3.1 psi21.4 kPa
Engine Power24.7 hp18.4 kW

Size Matters

The RT-25 Posi-Track® compact track loader is designed and created to feature the productivity and comfort that landscapers, homeowners and contractors need. Designed small, the RT-25 offers patented Posi-Track technology with the suspension, traction, and flotation you count on to shape the earth.

Features

Get More From Less

RT-25 Small Compact Track Loader

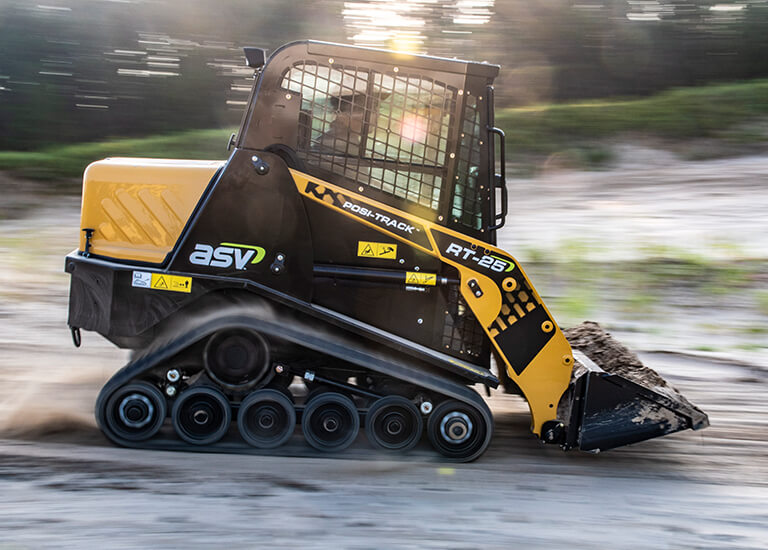

Power

This versatile machine offers an industrial 25-horsepower Perkins diesel engine. Operators can use that power to achieve maximum productivity by moving around quickly (5.1 mph top speed), digging and lifting more. The engine is turbocharged so it can output its full horsepower even at high elevations.

RT-25 Small Compact Track Loader landscaping tracks

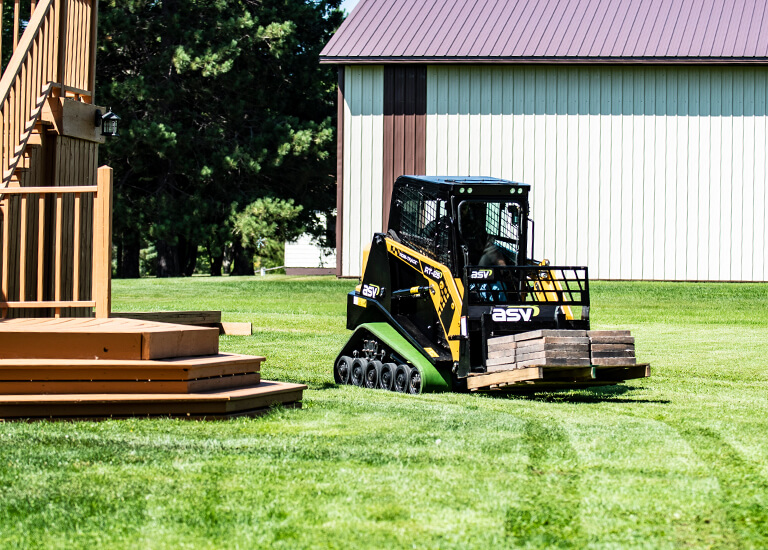

Performance

The RT-25 features a 4-foot machine width, a rated operating capacity of 665 pounds, and an 8.4 foot lift height. ASV builds this economical machine to exert minimal ground pressure and flotation while giving operators the ability to work in tight spaces with exceptional pushing and digging power.

RT-25 Small Compact Track Loader Cab comfort

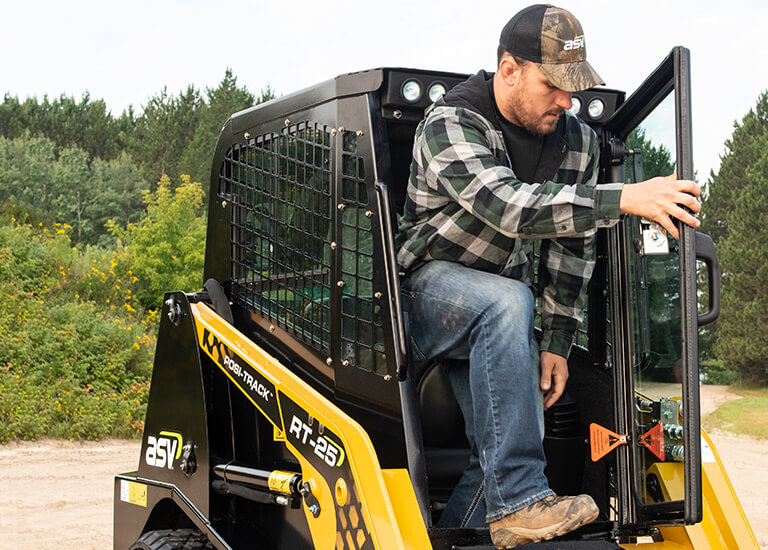

Comfort

We built the RT-25 to be comfortable, practical and easy to operate. An upgrade from a stand-on or walk-behind loader, it comes with an adjustable contour vinyl seat with built-in operator presence switch, lap bar and 2-inch wide seat belt—an adjustable suspension seat is optional. You’ll find right and left hand pilot hydraulic joystick controls for smooth lift, tilt and control. The RT-25 also features an optional heated cab for additional comfort during winter operation.

Small Compact Track Loader

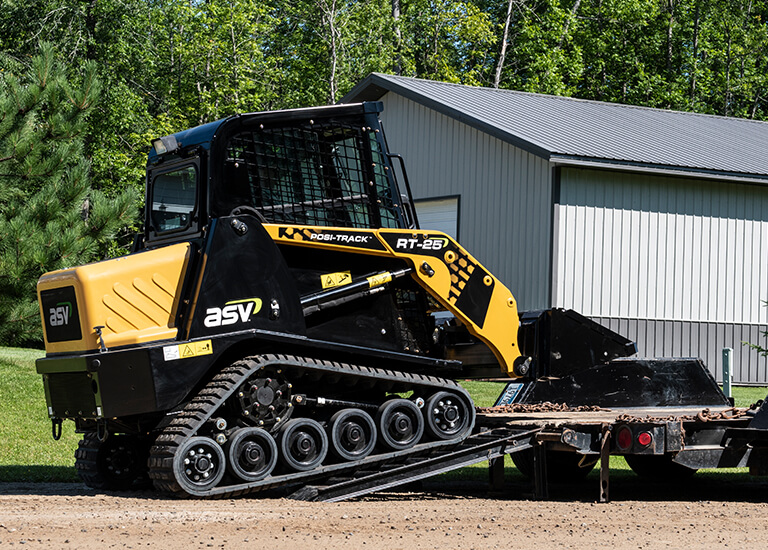

Serviceability

As with all models, ASV equips the RT-25 with direct drive pumps. The direct drive system eliminates labor-intensive belt servicing required with belt-driven pumps and a one-piece hood allows easy access to all components and service checkpoints.

Standard Features Comparison

Joystick Controls

Joystick Controls

ASV RT-25

Bobcat MT85

Toro TX1000

Ditch Witch SK1050

ROPS/FOPS Protection

ROPS/FOPS Protection

ASV RT-25

Bobcat MT85

Toro TX1000

Ditch Witch SK1050

Torsion Axle Suspension

Torsion Axle Suspension

ASV RT-25

Bobcat MT85

Toro TX1000

Ditch Witch SK1050

Sit Down Comfort

Sit Down Comfort

ASV RT-25

Bobcat MT85

Toro TX1000

Ditch Witch SK1050

Some features shown may not be included in the base configuration.

RT-25 Specifications

Operations

Loader ArmsRadial
Operating Weight3755 lbs1703 kg
Rated Operating Capacity @ 35%665 lbs302 kg
Rated Operating Capacity @ 50%950 lbs431 kg
Ground Pressure3.1 psi21.4 kPa
Engine Power24.7 hp18.4 kW
Tipping Load1900 lbs862 kg
Max. Travel Speed5.1 mph8.2 kph
Height to Bucket Pin101 in.2565 mm
Maximum Dump Angle at Full Height40 Degrees40 Degrees
Rear Angle of Departure55 Degrees55 Degrees
Bucket Roll Back at Ground Level18 Degrees18 Degrees
Ground Clearance: Unloaded10 in.254 mm
Overall Length with Bucket114 in.2897 mm

Engine

FeaturesDiesel 3-cylinder, Perkins 403J-17T, Engine-Driven Fan, Anti-Freeze Filled Radiator Cooling System, Dual Stage Intake Air Cleaner, Engine Block Heater
Emissions ControlsMeets All Emission Standards for Markets: USA, Canada, Latin America, South America, Central America and Caribbean
Engine Power24.7 hp18.4 kW
Displacement103.7 in1.7 L
Gross Horsepower24.7 hp18.4 kW
Torque Peak66.4 ft-lb90 Nm

Drive Train

FeaturesDual Hydraulic Drive Motors, 2 Independent Torsion Axle Suspension, Duo Cone Front & Rear
Track Width11 in279 mm
Length of Track on the Ground55 in1397 mm
Ground Contact Area1210 in278 m2
Roller Wheels 12 high density polyurethane 12 high density polyurethane
Roller Wheel Diameter10 in254 mm

Auxiliary Hydraulic

FeaturesPilot Hydraulic Joystick Control, Manual Quick Attach
Maximum System Pressure3000 psi20684 kPa
Auxiliary Hydraulic Connections2 flat face, 1/2 inch12.7 mm
Auxiliary Pump Flow11.3 gpm42.8 lpm

Electrical System

FeaturesUpgradeable Wiring Harness
Nominal Charge12 V12 V
Battery525 CCA525 CCA
Alternator Charging System65 Amp65 Amp
Port Outlet (Inside Operators Cab)1 - 12V1 - 12 V

Operator Station

FeaturesROPS, Basic Seat w/ 2, Horn, Backup Alarm
Loader ControlRight-Hand Pilot Hydraulic Joystick Controls Loader Tilt/Lift, With Intermittent Control of Auxiliary Hydraulics
Drive ControlLeft-Hand Pilot Hydraulic Joystick Controls, Hand Throttle Engine Speed Control
GaugesFuel, Engine Temperature, Hour Meter, Battery, Hydraulic Temperature, Engine Oil Pressure
ROPSMeets SAE J1040 MAY94, ISO 3471
FOPSMeets SAE J1043 SEPT87, ISO 3449
Illumination4 Fixed Forward Facing Lights, 1 Rear Facing Light

Service Capacity

Fuel Tank10 gal37.9 L
Hydraulic Tank4 gal15.1 L
Engine Coolant1.6 gal6.1 L
Engine Oil (Including Filter)6.3 quarts5.7 L

Dimensions

Compact track loader dimension diagram

Dimensions

  1. 114 in.2897 mm
  2. 101 in.2565 mm
  3. 72.5 in. 1842 mm
  4. 48 in.1219 mm
  5. 10 in.254 mm

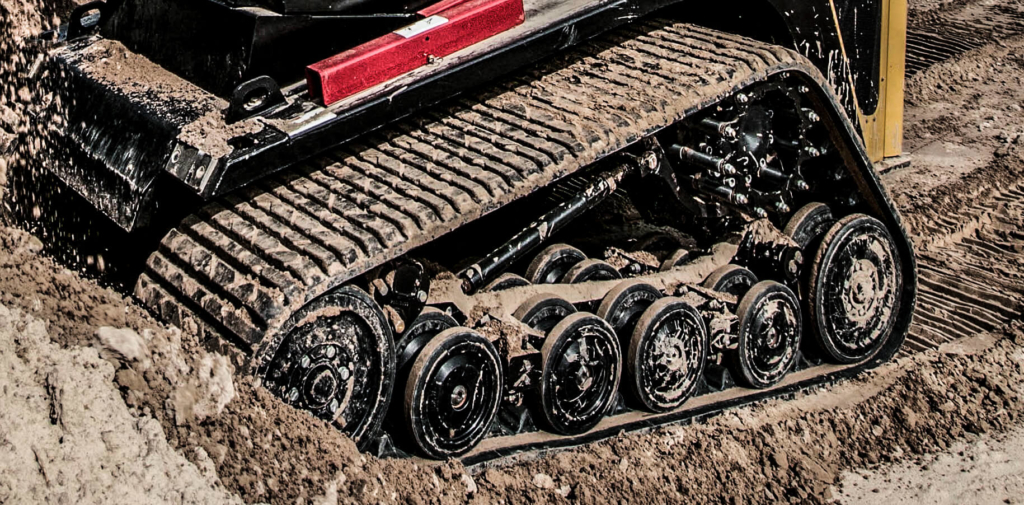

Compact track loader tracks
