RT-135 Forestry Compact Track Loader

Bigger. Stronger. Tougher.

The RT-135 Forestry make impossible jobs seems ordinary. Comfortable and easy to operate, the MAX-Series premium operator experience is front and center to getting big forestry jobs done.



Quick Specs

USMetric

Brief

Loader Armscompact-track-radial
Operating Weight12990 lbs5892 kg
Rated Operating Capacity4150 lbs1882 kg
Ground Pressure4.6 psi32 kPa
Engine Power132 hp98.4 kW

Bigger. Stronger. Tougher.

The RT-135 Forestry make impossible jobs seems ordinary. Comfortable and easy to operate, this machine makes a day of working in the woods feel like a day at the beach.

Features

Let The Big Dog Eat

Power

A Cummins 3.8-liter, turbocharged diesel engine powers the RT-135 Forestry. This 132-horsepower engine produces 360 foot-pounds of torque which is transferred to the terrain through direct-drive hydraulic motors that moves through anything in its path.

Performance

The MAX-Series RT-135 Forestry features a rated operating capacity of 4,150 pounds and a tipping load of 11,858 pounds. It offers ASV’s patented Posi-Track® rubber-track suspension and includes both suspended wheels and axles, allowing it to achieve faster speeds. This machine offers a fully-flexible 20” tracks and suspended wheels that conform to the ground and a special guarding package. Combine that with 15 inches of ground clearance and you get a unit that works in more places, on more days, more comfortably than competitive machines.

Comfort

The RT-135 Forestry features our premium MAX-Series cab, designed with a spacious interior—including additional legroom, shoulder room and foot room—and improved ergonomics from corner to corner in order to reduce fatigue during long days and long jobs. An upgraded HVAC system allows for ideal circulation and better defrosting capabilities.

Serviceability

The RT-135 Forestry gives operators easy access to the Cummins engine through a three-panel hood and tilting cooler arrangement. This machine offers a hydraulic quick attach and a design that simplifies routine inspections of filters, oil and normal service items. The rearward tilting cab provides easy accessibility when further service is required.

Standard Features Comparison

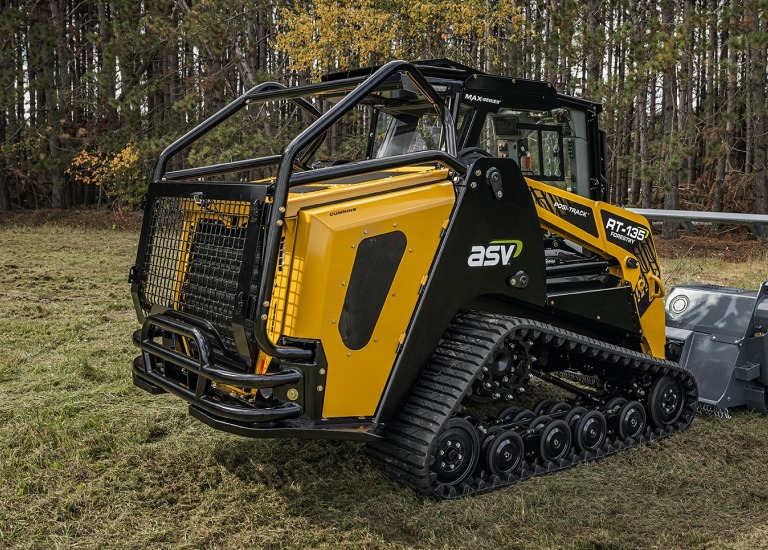

Heavy Duty Brush Guard Package

Heavy Duty Brush Guard Package

ASV RT-135 Forestry

Cat 299D3

Kubota SVL97-2

John Deere 333G

Roof Hatch Escape

Roof Hatch Escape

ASV RT-135 Forestry

Cat 299D3

Kubota SVL97-2

John Deere 333G

Auto Reversing Fan

Auto Reversing Fan

ASV RT-135 Forestry

Cat 299D3

Kubota SVL97-2

John Deere 333G

20" Wide Tracks

20" Wide Tracks

ASV RT-135 Forestry

Cat 299D3

Kubota SVL97-2

John Deere 333G

Some features shown may not be included in the base configuration.

RT-135 Forestry Specifications

Operations

Loader ArmsRadial
Operating Weight12990 lbs5892 kg
Rated Operating Capacity @ 35%4150 lbs1882 kg
Rated Operating Capacity @ 50%5929 lbs2689 kg
Ground Pressure4.6 psi32 kPa
Engine Power132 hp98.4 kW
Tipping Load11858 lbs5379 kg
Travel Speed, Maximum - 1st Speed6 mph9.7 kph
Travel Speed, Maximum - 2nd Speed10 mph16 kph

Engine

TypeDiesel 4-cylinder, turbo charged
ModelCummins QSF3.8
Cooling SystemTemperature-controlled, variable speed and operator time-selectable, hydraulically-driven, auto-reversing fan and coolant/anti-freeze-filled radiator
Intake Air CleanerThree-stage
Emission ControlsMeets all U.S. EPA Tier 4 final standards
Standard FeatureAuto Idle
Engine Power132 hp98.4 kW
Gross Power Rating132 hp98.4 kW
Torque Peak360 ft-lb488 Nm

Drive Train

Track TypeGeneral purpose track constructed of rubber compound with embedded co-polymer cords and all-purpose treads.
Drive SystemTwo hydrostatic direct drive sprockets controlled by a single joystick
Track Drive SprocketElevated with low friction, replaceable sprocket rollers
Undercarriage suspensionTwo independent torsion axles per undercarriage
Roller Wheels24 high-density polyurethane and rubber wheels per track. Wheels include sealed bearings
Track Width20 in508 in.
Length of Track on the Ground71 in1803 mm
Ground Contact Area2840 in21.83 m2
Roller Wheel Diameter Front & rear wheels15 in281 mm
Roller Wheel Diameter Middle Wheel10 in254 mm

Auxiliary Hydraulic

ControlsIntermittent via joystick button or continuous via console switch. High-flow is adjustable and loader/auxiliary sharing is adjustable via machine display
CouplersPush-to-connect quick couplers mounted on loader arms. Pressure relief valve on coupler block
Cooling SystemHigh efficiency side-by-side radiator and oil cooler
Pump Capacity Low20 gpm75.7
Pump Capacity High50 gpm189 lpm
System Pressure Max Low3300 psi22750 kPa
System Pressure Max High4060 psi27993 kPa

Electrical System

Standard FeaturesAttachment control kit, block heater
WiringPre-wired for all factory-available accessories
Outlets1 - 12 V inside operator station
Charging System120 Amp
Nominal Charge12 V12 V
Battery950 CCA950 CCA

Operator Station

SeatAdjustable air ride contour vinyl seat with built-in operator presence switch, lap bar and 2 in. ( 51 mm ) wide seat belt, operator manual pouch
Loader ControlRight-hand electronic joystick controls loader lift, lower and tilt, plus intermittent control of auxiliary hydraulic. Loader speed is adjustable and selectable from ISO or H control pattern
Drive Control: Left-hand electronic joystick controls machine speed and direction. Track speed is adjustable, includes a Creep Mode and is selectable from ISO or H control pattern
Engine SpeedHand-operated throttle and foot throttle
7-Inch Color Machine DisplayEngine RPM, engine oil pressure, hydraulic oil high temperature, engine coolant temperature, battery voltage, hour meter, fuel level, trip meter, engine diagnostics, system monitoring, fault logging, integrated rear view camera, password protection with user profiles, job clock, maintenance schedules, Def level, Adjustable controls, Adjustable hydraulic flows, winch (optional) control.
ROPSISO 8082-Forestry
FOPSISO 8083-Forestry
OPSISO 8084-Forestry, BC WCB G603 - Window guards for forestry, BC WCB G604 - Light duty screen guards for off highway, BC WCB G608 - Heavy duty roof structure, ISO 6683 - Seat belt anchors, CAL OSHA 1596 - Seat belt, SAE J2292 - Shoulder restraint (when equipped with 3 point options), ISO 11839 - Forestry thrown object guard
Illumination2 - Adjustable forward-facing LED lights, 2 - Adjustable rear-facing LED lights, 1 - Interior light, 2 - LED side lights
Convenience12 V power port
Standard FeaturesHorn, backup alarm, cup holder, phone holder, behind seat storage, rear view mirror, lapbar, roof escape hatch, roof panel & rear cab windows. Adjustable joystick & arm rest positions, adjustable directional & air flow HVAC vents, radio with bluetooth & USB, frameless front door, attachment control kit, wiper/washer, easy-off door

Service Capacity

Fuel Tank52 gal196.8 L
Hydraulic Tank22 gal83.3 L
Engine Coolant5.5 gal20.8 L
Engine Oil (Including Filter)12 quarts11.4 L

Dimensions

Dimensions

  1. 163 in.4135 mm
  2. 125 in.3175 mm
  3. 90 in.2276 mm
  4. 78 in.1981 mm
  5. 15 in.381 mm
