Meet the Leader in Size, Power and Versatility
When it comes to power, performance, comfort and serviceability the RT-135 has it all. This machine was built to be a leader in a variety of applications and it’s been built to last.
Features
Prepare to Overachieve

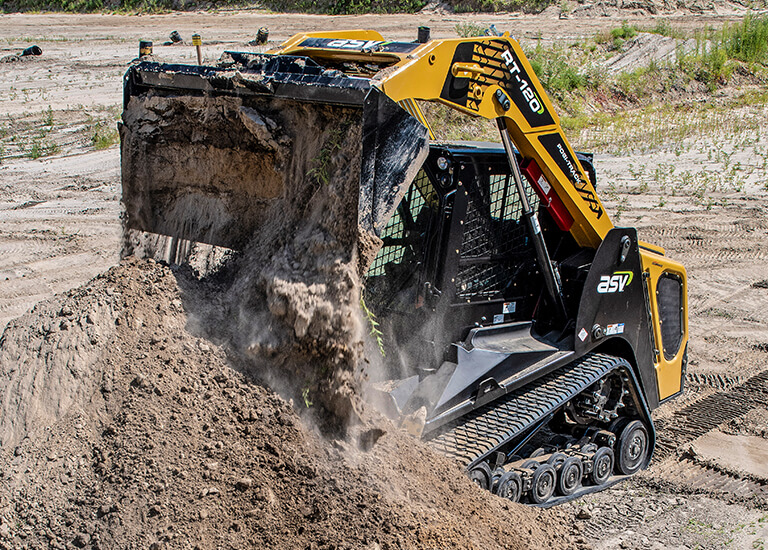

Power
A, turbocharged Cummins 3.8 liter diesel engine powers the RT-135. This 132-horsepower engine produces 360 foot-pounds of torque, which is transferred to the terrain through direct-drive hydraulic motors, allowing the machine to easily move through its path.

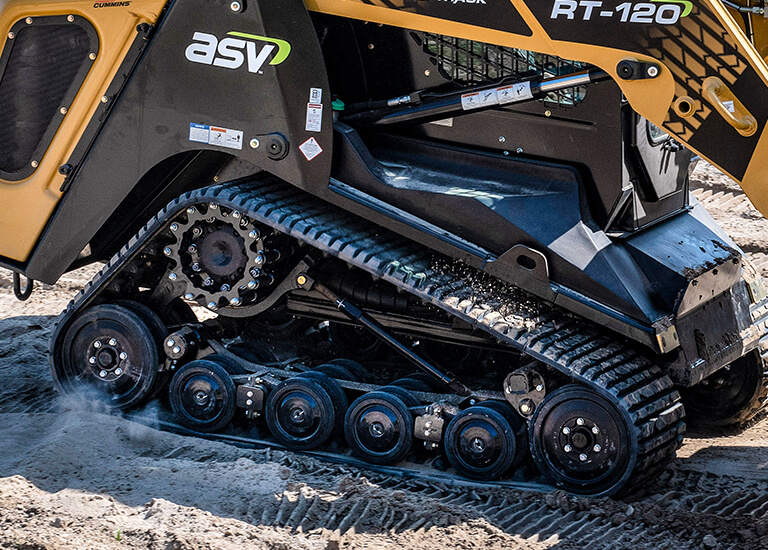

Performance
The RT-135 achieves superior performance over competitive machines. The unit features a rated operating capacity of 3,500 lbs. and a tipping load of 10,000 lbs. It features ASV’s patented Posi-Track® rubber-track suspension—well known for its smooth ride—and includes both suspended wheels and axles, allowing it to achieve faster speeds over all types of terrain. The fully-flexible track and suspended wheels conform to the ground, ensuring maximum traction in the roughest conditions. The MAX-Series features, combined with the RT-135’s 15 inches of ground clearance, allow the unit to work in more places, on more days and more comfortably than competitive machines.

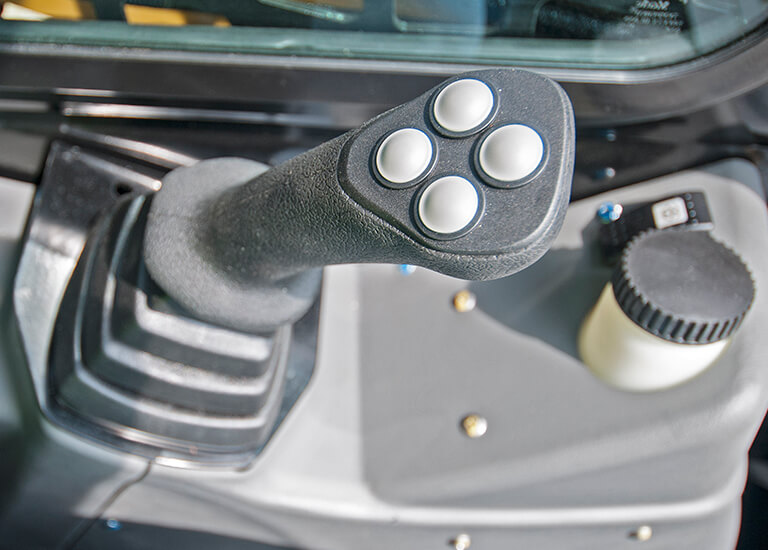

Comfort
The RT-135 features our premium MAX-Series cab, designed with a spacious interior—including additional legroom, shoulder room and foot room—and improved ergonomics from corner to corner in order to reduce fatigue during long days and long jobs. An upgraded HVAC system allows for ideal circulation and better defrosting capabilities.

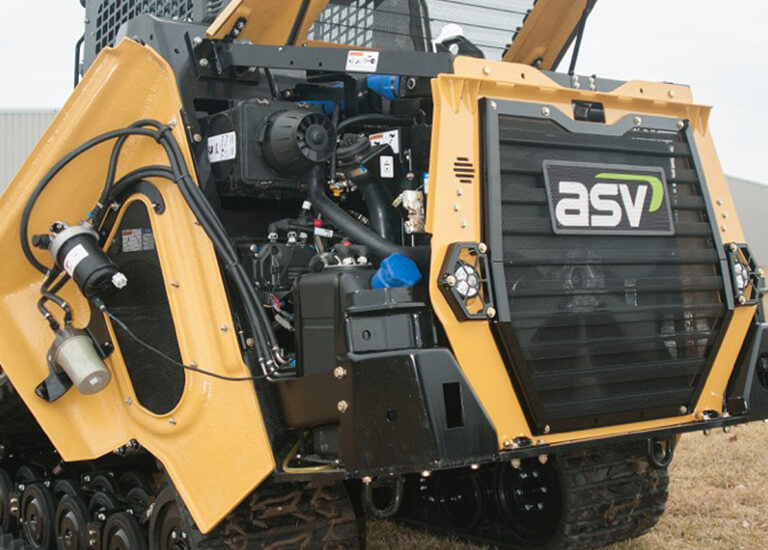

Serviceability
The RT-135 gives operators easy access to the Cummins engine through a three-panel hood and tilting cooler arrangement. This machine offers a hydraulic quick attach and a design that simplifies routine inspections of filters, oil and normal service items. The rearward tilting cab provides easy accessibility when further service is required.
Standard Features Comparison
Selectable Pattern Joystick Controls
Selectable Pattern Joystick Controls
ASV RT-135
Bobcat T870
Takeuchi TL12R2
Case TV620B
5-coupler, Simultaneous Use of High and Low Flow
5-coupler, Simultaneous Use of High and Low Flow
ASV RT-135
Bobcat T870
Takeuchi TL12R2
Case TV620B
118° F, 100% Load Cooling Package
118° F, 100% Load Cooling Package
ASV RT-135
Bobcat T870
Takeuchi TL12R2
Case TV620B
All Clear Cab Sides
All Clear Cab Sides
ASV RT-135
Bobcat T870
Takeuchi TL12R2
Case TV620B
Some features shown may not be included in the base configuration.
RT-135 Specifications
Operations
| Loader Arms | Radial | |
|---|---|---|
| Operating Weight | 12075 lbs | 5477 kg |
| Rated Operating Capacity @ 35% | 3500 lbs | 1588 kg |
| Rated Operating Capacity @ 50% | 5000 lbs | 2268 kg |
| Ground Pressure | 4.7 psi | 48.3 kPa |
| Engine Power | 132 hp | 98.4 kW |
| Tipping Load | 10000 lbs | 4536 kg |
| Max. Travel Speed | 10 mph | 16 kph |
| Height to Bucket Pin | 125 in. | 3175 mm |
| Dump Height at Bucket Discharge | 91 in. | 2311 mm |
| Rear Angle of Departure | 34 Degrees | 34 Degrees |
| Bucket Roll Back at Ground Level | 45 Degrees | 45 Degrees |
| Ground Clearance | 15 in. | 381 mm |
| Overall Length with Bucket | 157 in. | 3988 mm |
| Reach at Dump Height | 24 in. | 610 mm |
Engine
| Type | Diesel, 4-cylinder, turbocharged |
|---|---|
| Model | Cummins QSF3.8 |
| Cooling System | Temperature-controlled, variable speed hydraulically-driven fan and coolant/anti-freeze-filled radiator |
| Intake Air Cleaner | Three-stage |
| Emission Controls | Meets all U.S. EPA Tier 4 final standards |
| Standard Feature | Auto Idle |
| Engine Power | 132 hp | 98.4 kW |
|---|---|---|
| Displacement | 232 in.3 | 3.8 L |
| Gross Horsepower | 132 hp | 97.1 kW |
| Torque Peak | 360 ft-lb | 488 Nm |
Drive Train
| Track Type | General purpose track constructed of rubber compound with embedded co-polymer cords and all-purpose treads. |
|---|---|
| Drive System | Two hydrostatic direct drive sprockets controlled by a single joystick |
| Track Drive Sprocket | Elevated with low friction, replaceable sprocket rollers |
| Undercarriage Suspension | Two independent torsion axles per undercarriage |
| Roller Wheels | 24 high-density polyurethane and rubber wheels per track. Wheels include sealed bearings |
| Track Width | 18 in. | 457 mm |
|---|---|---|
| Length of Track on the Ground | 71 in. | 1803 mm |
| Ground Contact Area | 2556 in.2 | 1.65 m2 |
| Roller Wheel Diameter Front & rear wheels | 15 in | 381 mm |
| Roller Wheel Diameter Middle Wheel | 10 in | 254 mm |
Auxiliary Hydraulic
| Controls | Intermittent via joystick button or continuous via console switch. High-flow is adjustable and loader/auxiliary sharing is adjustable via machine display |
|---|---|
| Couplers | Push-to-connect quick couplers mounted on loader arms. Pressure relief valve on coupler block |
| Cooling System | High efficiency side-by-side radiator and oil cooler |
| Pump Capacity Low | 20 gpm | 75.7 lpm |
|---|---|---|
| Pump Capacity High | 50 gpm | 189 lpm |
| System Pressure Max Low | 3300 psi | 22750 kPa |
| System Pressure Max High | 4060 psi | 27993 kPa |
Electrical System
| Standard Features | Attachment Control kit, block heater |
|---|---|
| Outlets | 1 -12 V port inside operator station |
| Wiring | Pre-wired for all factory-available accessories |
| Charging System | 120 amp alternator |
| Nominal Charge | 12 V | 12 V |
|---|---|---|
| Battery | 950 CCA | 950 CCA |
Operator Station
| Seat | Adjustable contour vinyl mechanical seat with built-in operator presence switch, lap bar and 2 in. ( 51 mm ) wide seat belt, operator manual pouch |
|---|---|
| Loader Controls | Right-hand electronic joystick controls loader lift, lower and tilt, plus intermittent control of auxiliary hydraulic. Loader speed is adjustable and selectable from ISO or H control pattern |
| Drive Control | Left-hand electronic joystick controls machine speed and direction. Track speed is adjustable, includes a Creep Mode and is selectable from ISO or H control pattern |
| Engine Speed | Hand-operated foot throttle and foot throttle |
| Machine Display | 7-INCH COLOR MACHINE DISPLAY: Engine RPM, engine oil pressure, hydraulic oil high temperature, engine coolant temperature, battery voltage, hour meter, fuel level, trip meter, engine diagnostics, system monitoring, fault logging, integrated rear view camera, password protection with user profiles, job clock, maintenance schedules, Def level, Adjustable controls, Adjustable hydraulic flows, winch (optional) control. |
| ROPS | ISO 3471 Level 1 (level 2 optional) |
| FOPS | ISO 3449 Level 1 (level 2 optional) |
| Illumination | 2 - Adjustable forward-facing LED lights, 2 - Adjustable rear-facing LED lights, 1 - Interior light, 2 - LED side lights |
| Convenience | 12 V power port |
| Standard Features | Horn, backup alarm, cup holder, phone holder, behind seat storage, rear view mirror, lapbar, roof escape hatch, roof panel & rear cab windows. Adjustable joystick & arm rest positions, adjustable directional & air flow HVAC vents, radio with bluetooth & USB, frameless front door, attachment control kit, wiper/washer, easy-off door |
Service Capacity
| Fuel Tank | 52 gal | 196.8 L |
|---|---|---|
| Hydraulic Tank | 22 gal | 83.3 L |
| Engine Coolant | 5.5 gal | 20.8 L |
| Engine Oil (Including Filter) | 12 quarts | 11.4 L |
Dimensions
Dimensions
- 157 in.3988 mm
- 125 in.3175 mm
- 90 in.2276 mm
- 76 in.1930 mm
- 15 in.381 mm
